Het Hikvision DS-MI9605-GA/GLF Mobile Enforcement System is een geavanceerd mobiel handhavingsysteem ontworpen voor flexibele en efficiënte surveillance- en handhavingstoepassingen. Dit systeem is ideaal voor gebruik in voertuigen dankzij zijn robuuste ontwerp en uitgebreide functionaliteiten.

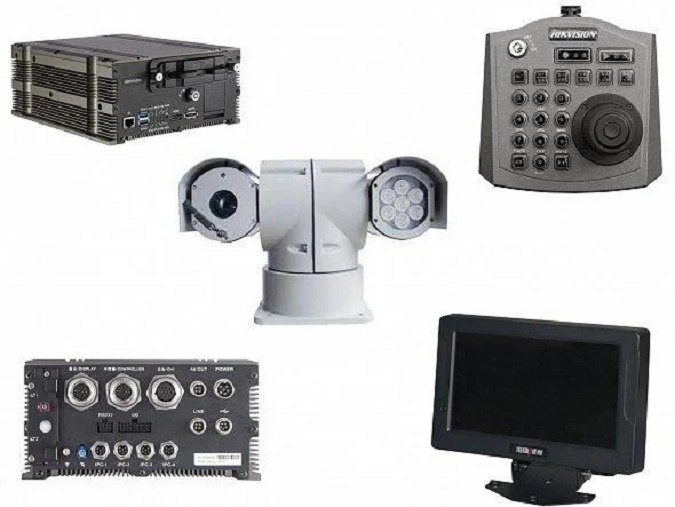

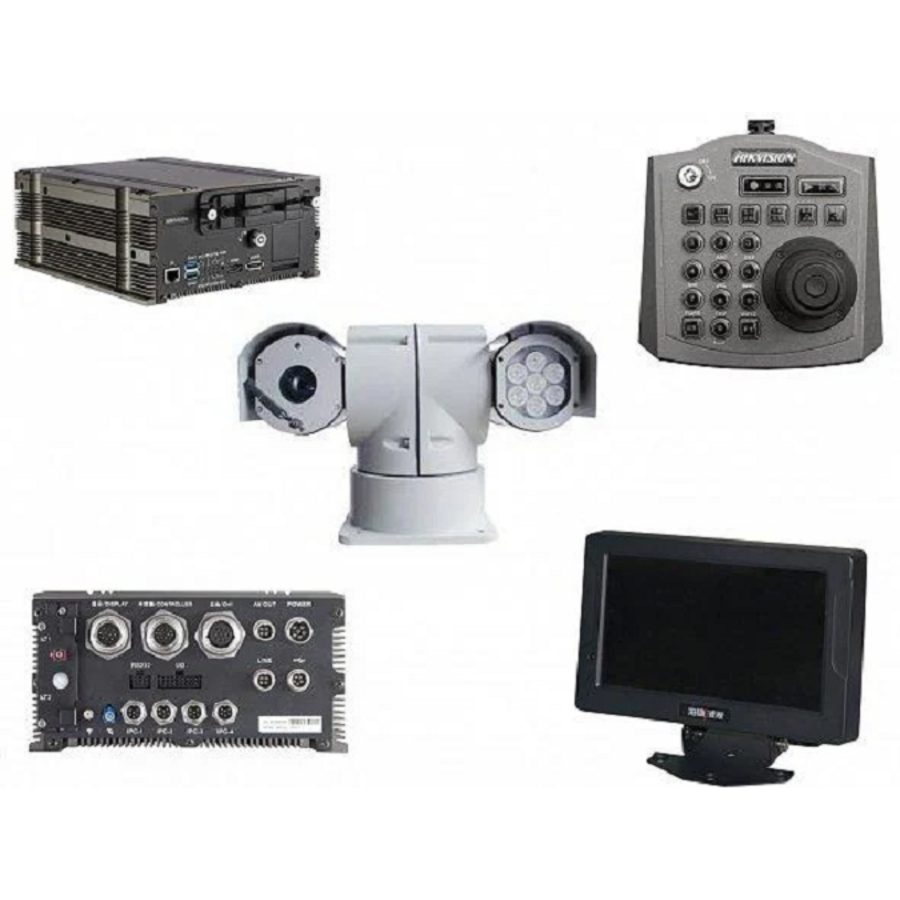

The Hikvision® Mobile Surveillance System is a comprehensive solution designed for mobile environments, such as police vans, emergency vehicles, and other special purpose vehicles. This system integrates multiple key technologies to provide all-weather, round-the-clock monitoring and security. It consists of a mobile video recorder, a network HD IR positioning system, a manual controller, and a 7-inch HD LCD display. Together, these components enable live video recording, GPS positioning, remote control, and high-quality image capture, even in low-light environments. The system is well-suited for applications such as traffic law enforcement, emergency response, and security surveillance.

Equipment:

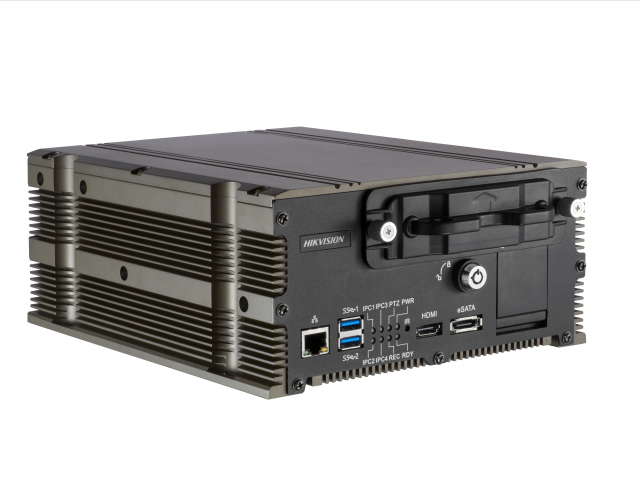

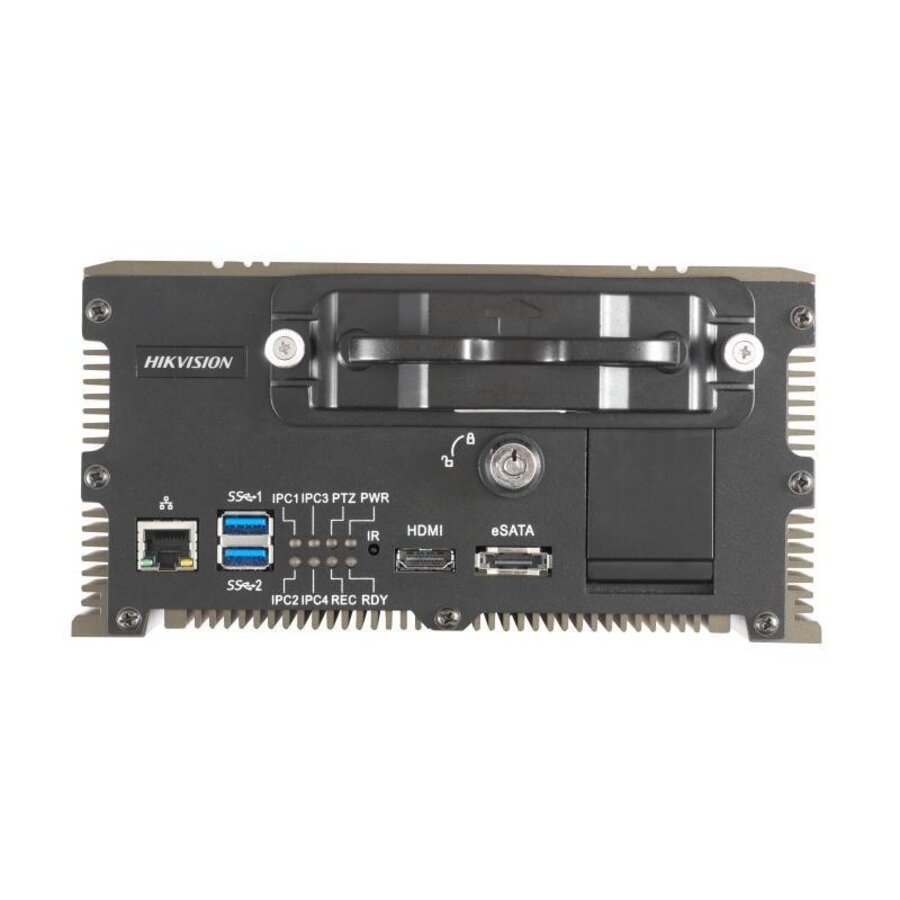

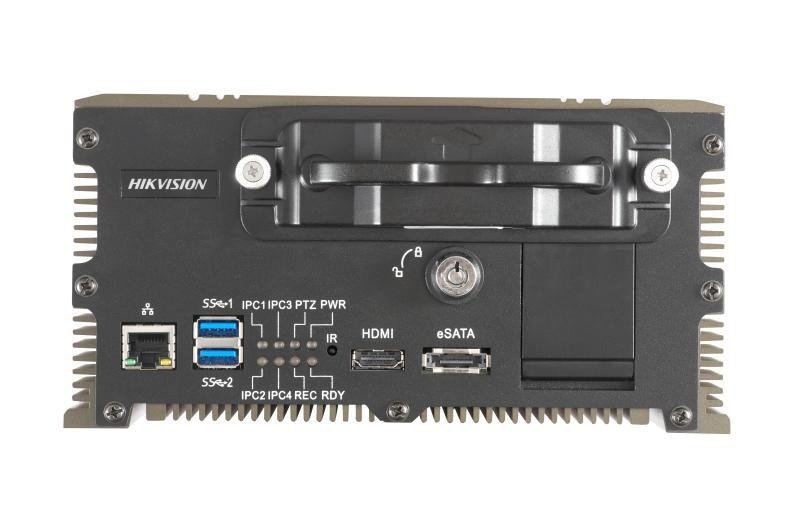

1. Mobile Video Recorder (Model: DS-MI9605-GA)

   • 1-ch 1080p network speed dome and 4-ch network camera inputs.
   • H.265 video compression.
   • Supports up to two 2.5-inch HDDs/SSDs with vibration-damping technology.
   • Built-in GPS for precise positioning and video overlay.

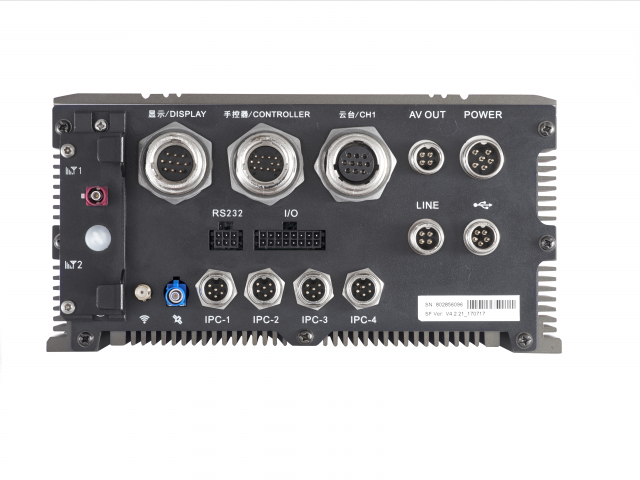

   • Multiple interfaces including USB 3.0, RS-232, VGA, HDMI, and alarm inputs.
   • Wide operating temperature range: -30°C to +75°C.

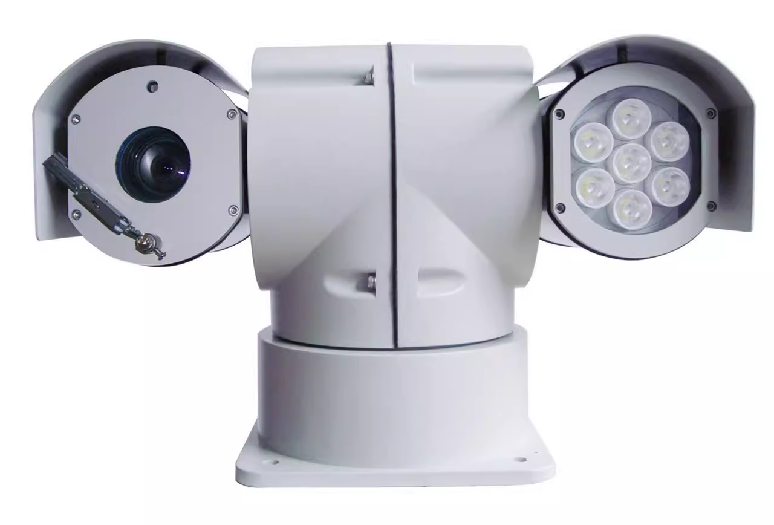

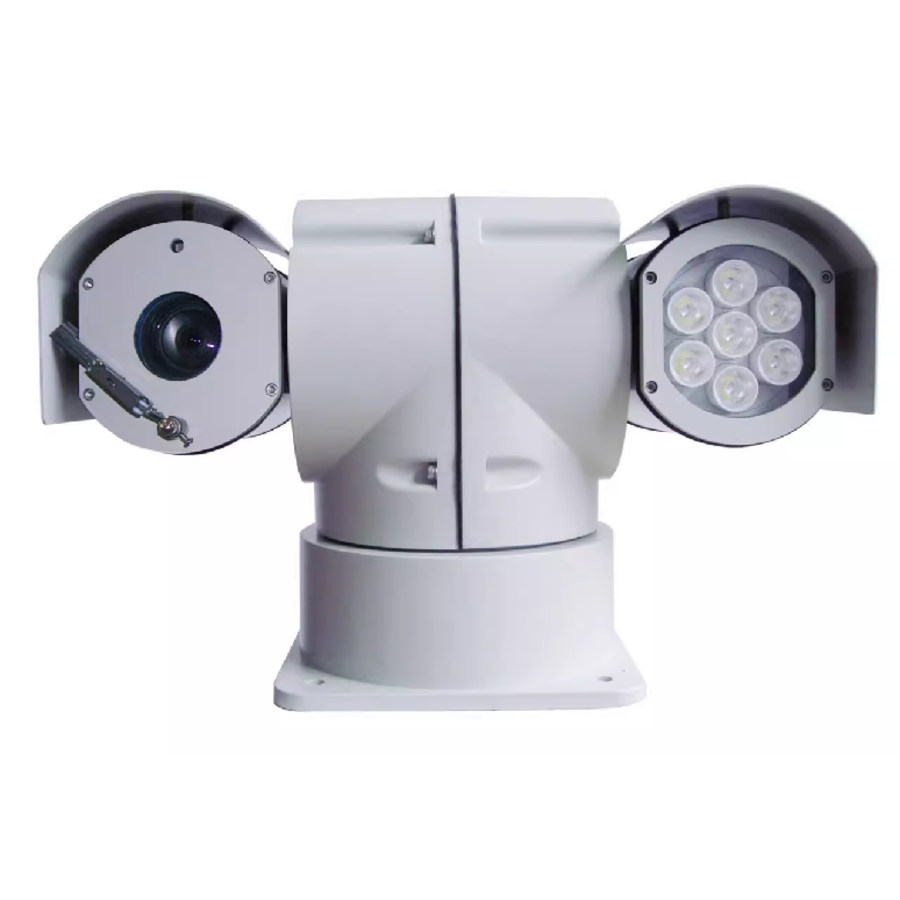

2. Network HD IR Positioning System (Model: iDS-TCC215-I/30/T(B))

   • 1/2.8" Progressive Scan CMOS sensor with 1080p resolution.
   • 30x optical zoom with a focal length of 4.5 to 135mm.
   • Up to 100m IR illumination for night surveillance.
   • IP66-rated for weatherproof performance and shock resistance (4G vibration resistance).
   • Full 360° pan and tilt functionality.

3. Manual Controller (Model: DS-1010K)

   • Joystick-based control for real-time positioning system operation.
   • Equipped with backlit buttons and a power lock feature.
   • Designed for rugged mobile environments with vibration-damping technology.

4. 7-inch HD Touchscreen LCD Display (Model: DS-MP1308)

   • 1024x600 resolution with multi-touch functionality.
   • LED backlight for clear visibility.
   • TFT display with aviation plug for secure connections.
   • Power consumption: ≤ 5W, designed to operate in extreme temperatures (-20°C to +60°C).

Technical Specifications:

1. Mobile Video Recorder: DS-MI9605-GA

   • Video Input: 1-ch network speed dome, 4-ch network camera.
   • Compression: H.265.
   • Video Output: 1-ch VGA, 1-ch HDMI, CVBS output.
   • Storage: Supports up to two 2.5-inch HDDs/SSDs.
   • Power Supply: 8 to 36 VDC, ≤ 80W power consumption.
   • Operating Temperature: -30°C to +75°C.
   • Weight: ≤ 4.5 kg.

2. Network HD IR Positioning System: iDS-TCC215-I/30/T(B)

   • Image Sensor: 1/2.8" Progressive Scan CMOS.
   • Resolution: 1080p at 25/30fps.
   • Zoom: 30x optical, focal length 4.5-135mm.
   • IR Distance: Up to 100 meters.
   • Pan/Tilt Speed: 100°/s (pan), 80°/s (tilt).
   • Ingress Protection: IP66.
   • Power Supply: 12 VDC ± 10%.
   • Weight: 6 kg.

3. Manual Controller: DS-1010K

   • Dimensions: 143 x 135 x 40 mm.
   • Weight: ≤ 0.5 kg.
   • Power Supply: 12 VDC, ≤ 2W.
   • Operating Temperature: -20°C to +60°C.

4. 7-inch HD LCD Display: DS-MP1308

   • Resolution: 1024x600.
   • Touchscreen: Multi-touch.
   • Power Supply: 12 VDC, ≤ 5W.
   • Operating Temperature: -20°C to +60°C.
   • Weight: ≤ 0.6 kg.

This system is ideal for law enforcement, mobile surveillance, and emergency operations, ensuring reliable performance under the most demanding conditions.
