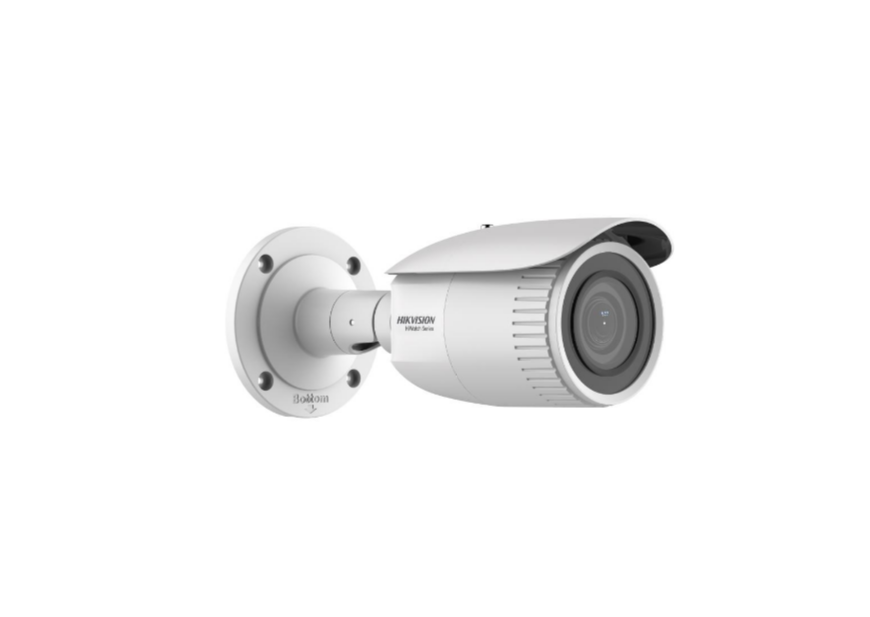

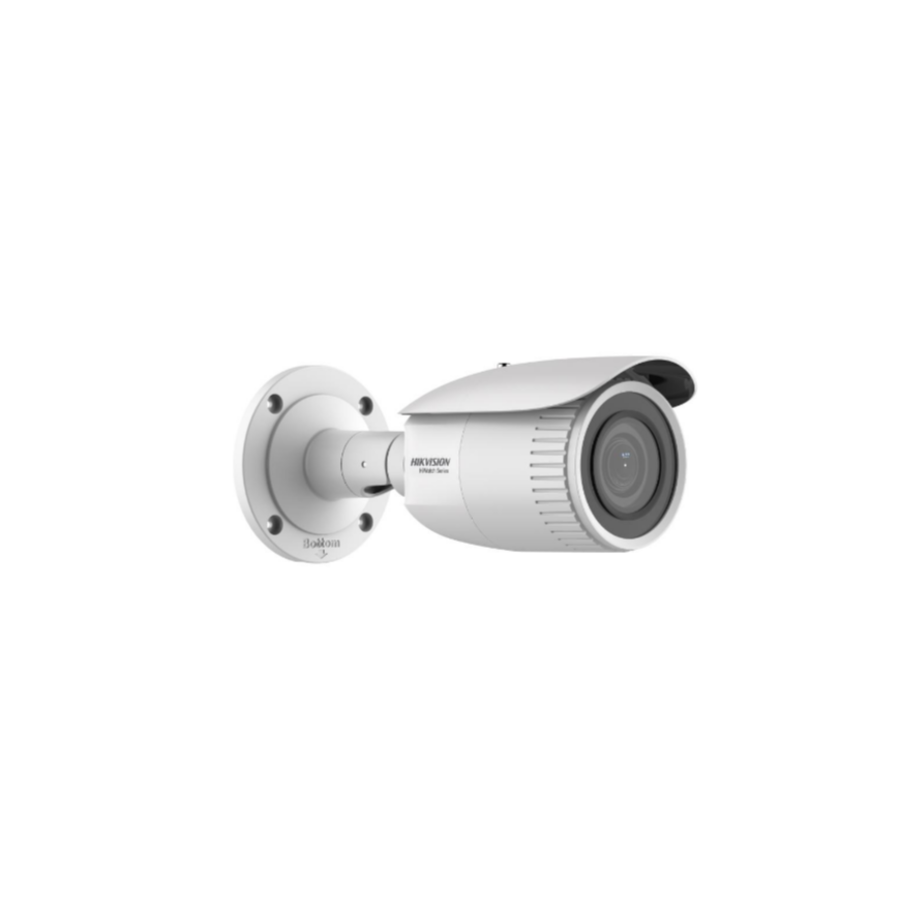

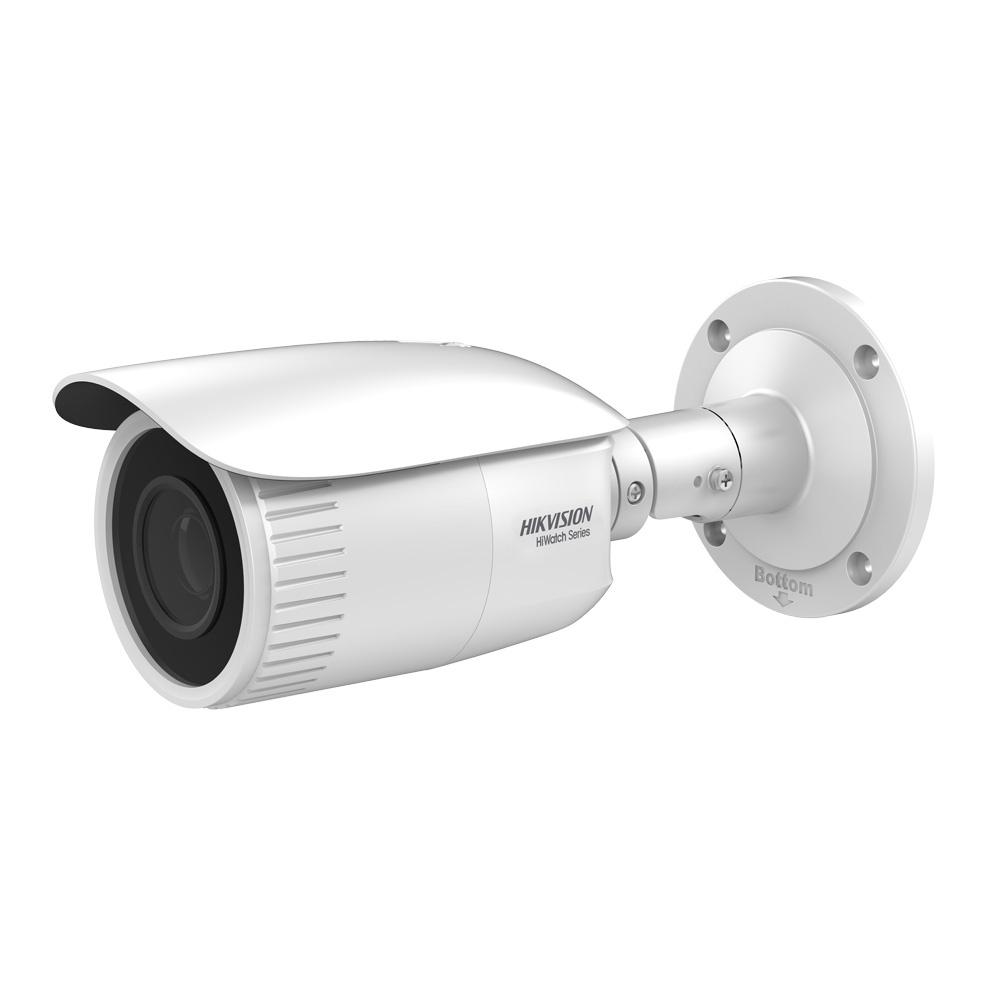

Hikvision® HWI-B620H-Z (2.8-12MM) 2MP EXIR IP Bullet Camera - DWDR - IP67 - 3D DNR - H.265+ - HiWatch Series

The Hikvision® HWI-B620H-Z (2.8-12MM) 2MP EXIR IP Bullet Camera is a high-quality and reliable security solution, ideal for outdoor use in various weather conditions, thanks to its IP67 rating. Equipped with a motorized varifocal lens (2.8 - 12 mm), the camera allows flexible field of view adjustments, ranging from 96° to 36° horizontally. With its 2MP resolution, the camera delivers clear and detailed images, even in low-light environments, thanks to the built-in EXIR LEDs, which provide up to 50 meters of infrared coverage, and 3D DNR technology that reduces noise. Additionally, the H.265+ compression ensures efficient bandwidth and storage usage without compromising image quality.

This camera features Digital Wide Dynamic Range (DWDR) technology, which helps maintain clear imaging even in challenging lighting conditions with strong backlighting. Designed for harsh environments, it operates within a wide temperature range of -30°C to +60°C. It supports multiple network protocols and integrates easily with Hikvision's iVMS-4200 software and Hik-Connect mobile app for convenient remote monitoring. This camera is perfect for various surveillance applications such as perimeter protection, business premises, and residential monitoring.

Technical Specifications:

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 1920 × 1080 (Full HD)
• Minimum Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Wide Dynamic Range: Digital WDR (DWDR)
• Day & Night Switch: IR-cut filter
• Lens:
  • Type: Motorized varifocal, 2.8 - 12 mm
  • Field of View:
    • Horizontal: 96° to 36°
    • Vertical: 51° to 20°
    • Diagonal: 113° to 42°
  • Aperture: F1.6
• IR Range: Up to 50 meters

Video:

• Main Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression: H.265+/H.265/H.264+/H.264 for main stream, H.265/H.264/MJPEG for sub-stream
• Bitrate: 32 Kbps to 8 Mbps

Network:

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, IPv4/IPv6, QoS, SSL/TLS
• Ethernet Interface: 1 RJ45 10M/100M self-adaptive port
• Storage: Supports microSD card up to 256 GB
• Users: Max. 32 users (3 levels: admin, operator, user)

Interface:

• Network Port: 1x RJ45 10M/100M Ethernet
• Storage: MicroSD card slot up to 256 GB

General:

• Power Supply:
  • 12 VDC ± 25%, max. 11 W
  • PoE (802.3af, Class 3), max. 12.9 W
• Dimensions: Ø105 mm × 244.4 mm (4.1" × 9.6")
• Weight: 1035 g (without packaging), 1550 g (with packaging)
• Protection Rating: IP67, water and dust resistant
• Operating Temperature: -30°C to +60°C, humidity up to 95% (non-condensing)
• Certifications: CE-EMC, FCC, UL, RoHS, WEEE

The Hikvision® HWI-B620H-Z provides robust and flexible security capabilities for a variety of applications, with advanced technologies to ensure optimal image quality and easy integration into existing surveillance systems.
