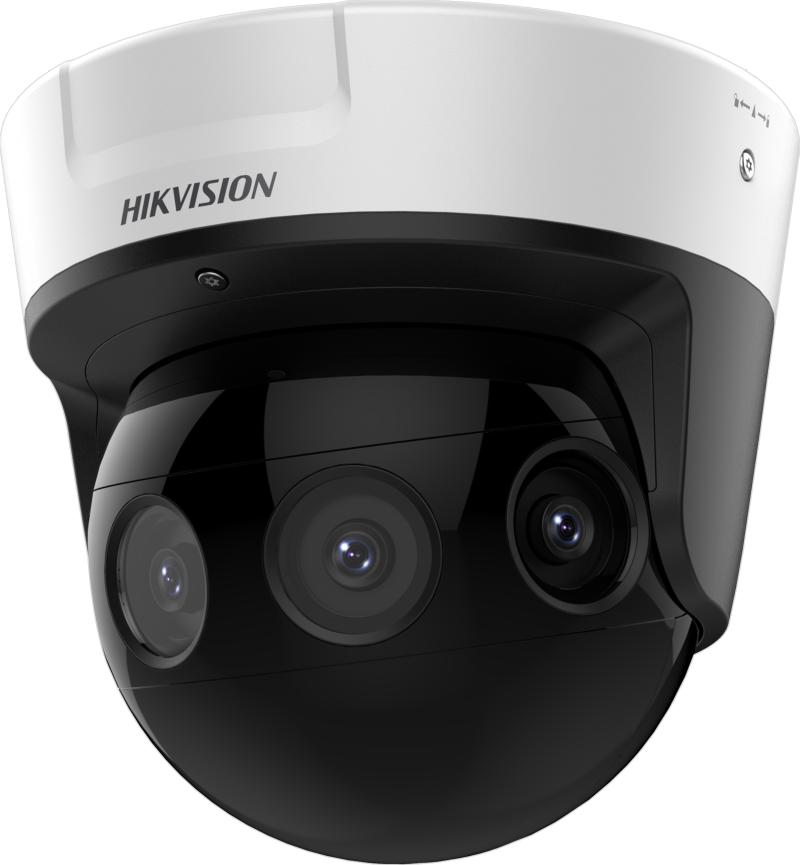

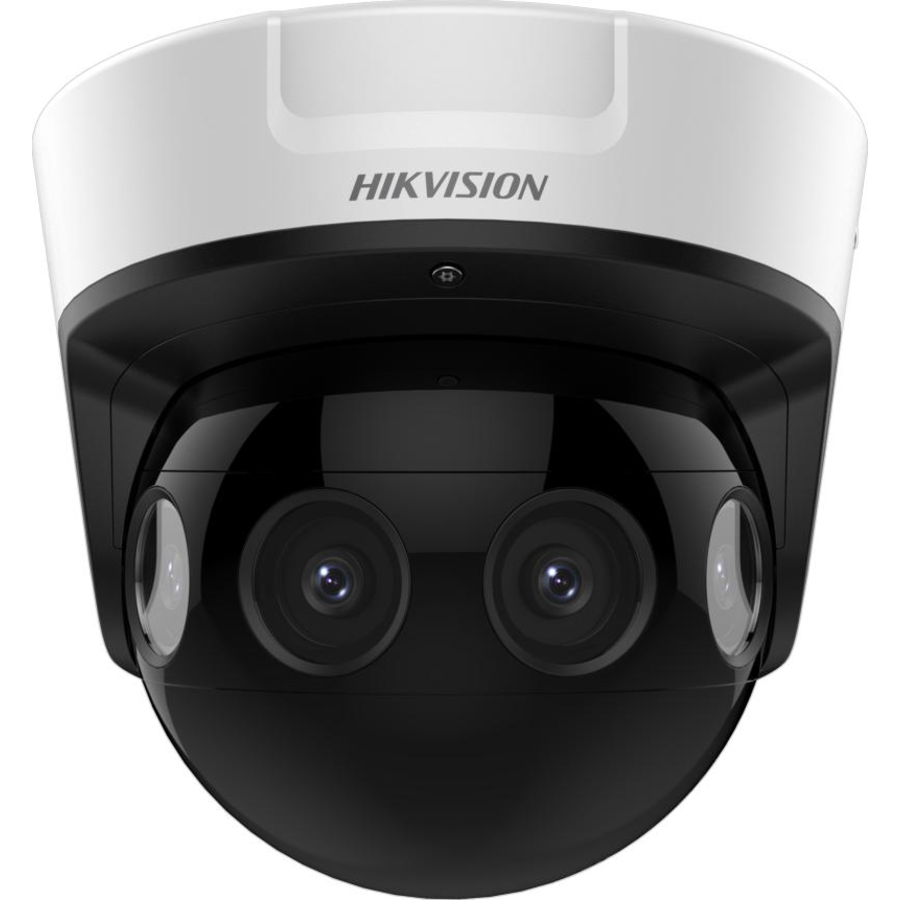

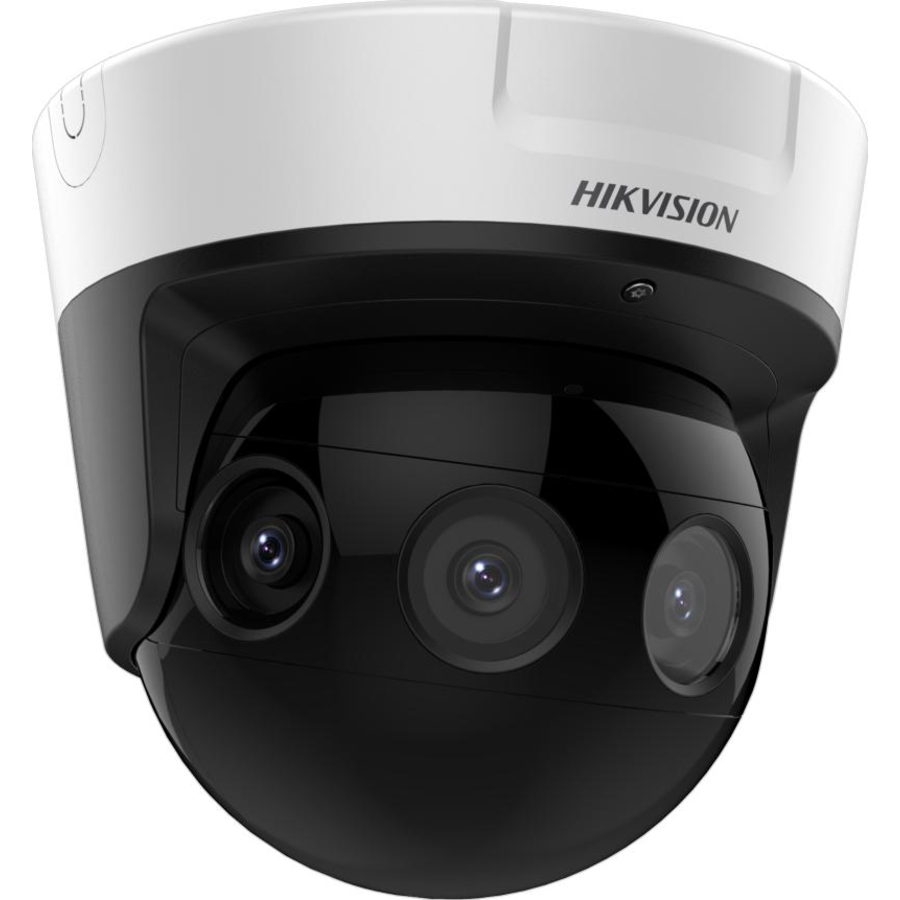

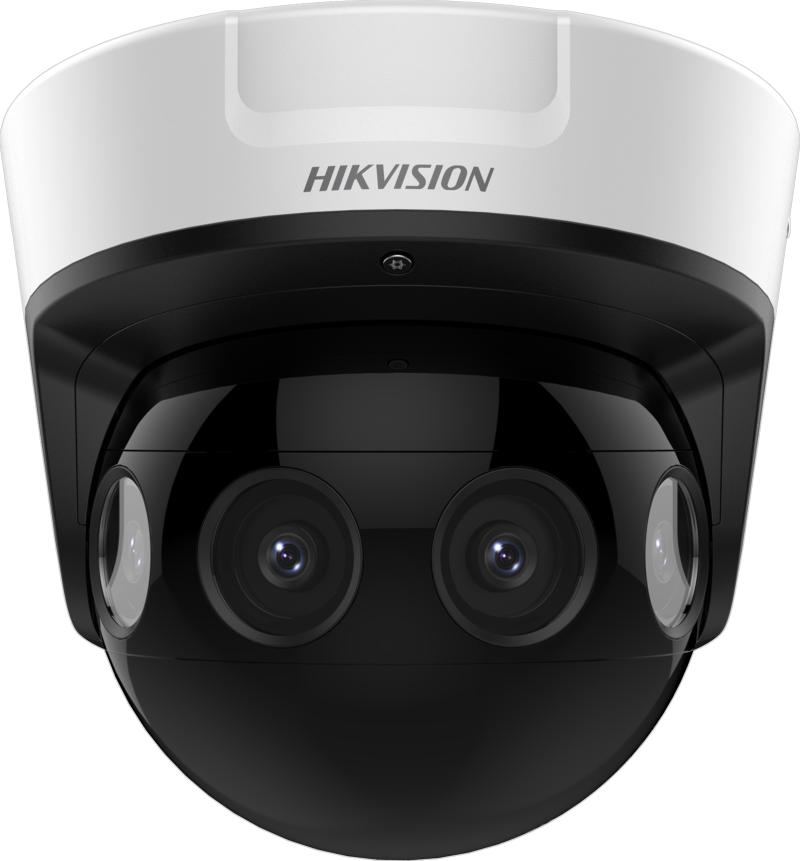

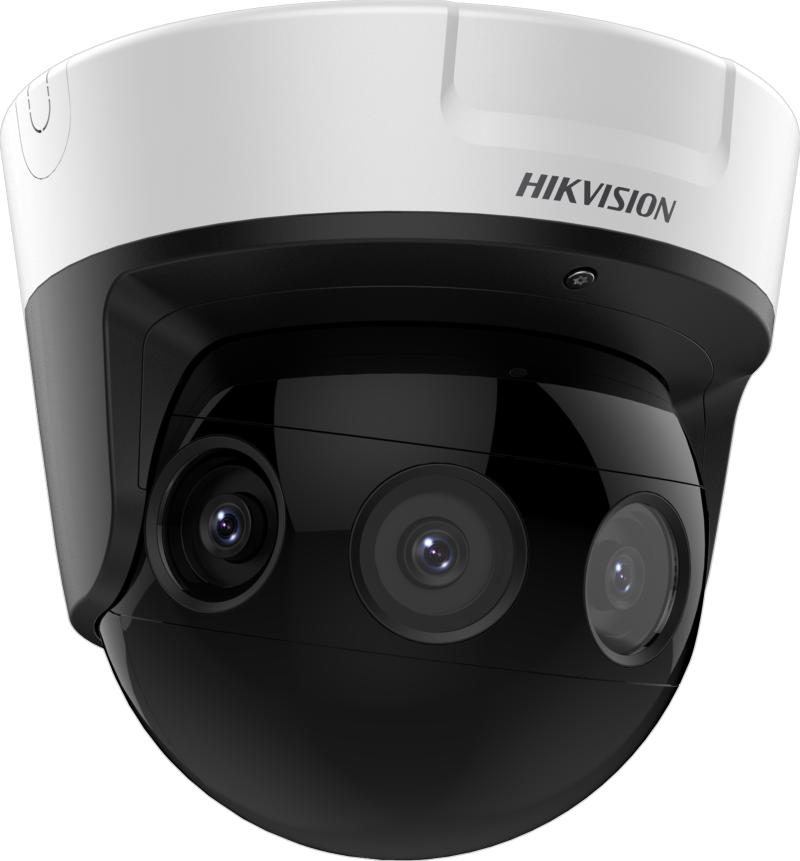

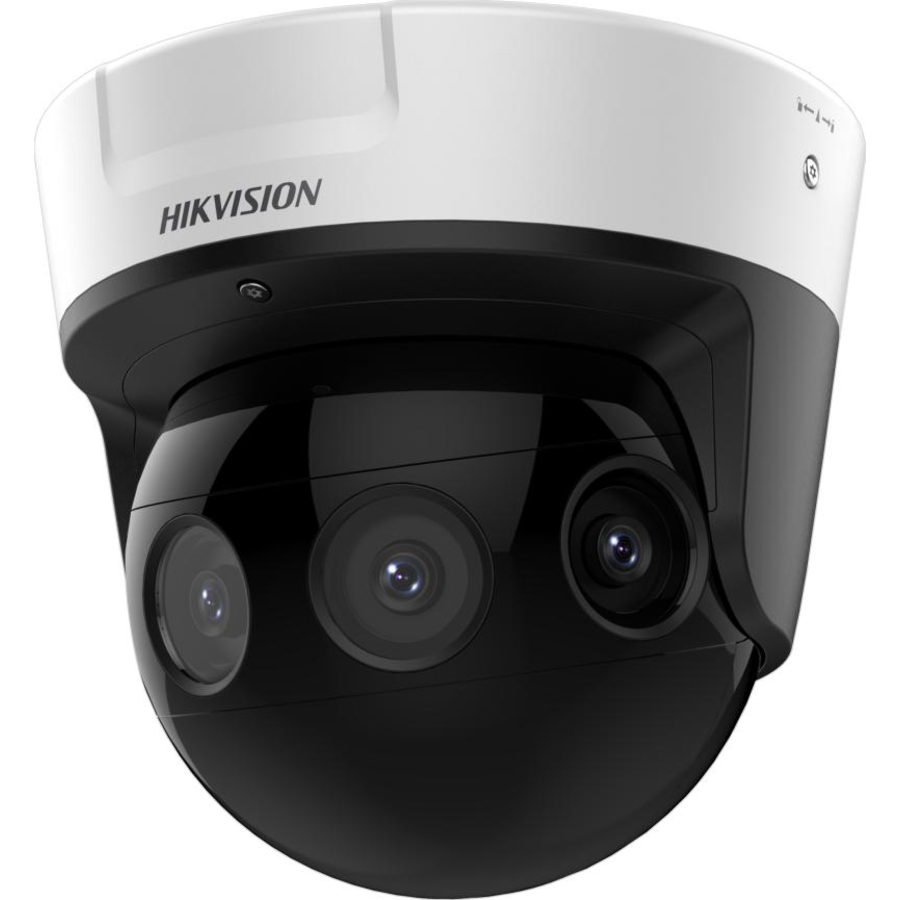

The Hikvision® DS-2CD6924G0-IHS NFC PanoVu Panoramic Network Camera is an advanced multisensor 8 MP camera designed for comprehensive 180° panoramic surveillance. Equipped with four fixed lenses, this camera captures a seamless 180° horizontal field of view, minimizing blind spots and providing a high-resolution, clear image even in low light, thanks to DarkFighter technology. This robust camera is ideal for large outdoor areas, such as public plazas, parking lots, and stadiums, where broad coverage and reliable performance in varying weather conditions are essential.

The camera features a built-in heater, enabling it to operate in extremely cold conditions (down to -40°C), along with Smart Defog technology to enhance visibility in challenging weather. With IP67 and IK10 ratings, the DS-2CD6924G0-IHS NFC is resistant to dust, water, and vandalism. Various display modes, including panorama and ePTZ, allow users to tailor their viewing experience, and advanced H.265+ compression optimizes bandwidth usage while preserving image quality. This camera is also ONVIF compatible, facilitating integration with diverse security systems.

Technical Specifications:

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Resolution:
  • 2.8mm lens: Panorama mode at 3840 × 2160
  • 6mm lens: Panorama mode at 6480 × 1080
• Minimum Illumination:
  • Color: 0.003 Lux @ (F1.2, AGC ON)
  • B/W: 0.0018 Lux @ (F1.6, AGC ON) with IR
• Day & Night: IR-cut filter with blue glass technology to reduce ghosting
• Lens:
  • Type: Four fixed lenses (2.8mm and 6mm options)
  • Field of View (2.8mm): 180° horizontal, 90° vertical
  • Field of View (6mm): 180° horizontal, 25° vertical
• Aperture: F1.4
• IR Range: Up to 20 meters
• WDR: Digital WDR

Video:

• Main Stream:
  • 2.8mm lens, 50Hz: Up to 25fps at 3840 × 2160
  • 6mm lens, 50Hz: Up to 25fps at 6480 × 1080
• Substream:
  • 2.8mm lens: 50Hz: 25fps at 1280 × 720
  • 6mm lens: 50Hz: 25fps at 2400 × 400
• Compression: H.265+, H.265, H.264+, H.264
• Bitrate: 32 Kbps to 65 Mbps

Audio:

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM
• Environmental Noise Filtering: Yes

Network:

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, RTP, RTSP, SNMP, QoS, IPv4/IPv6, etc.
• Storage: NAS, ANR
• Max. Simultaneous Live View: 20 channels

Event and Alarm Features:

• Basic Events: Motion detection, network anomalies
• Alarm Triggers: Upload to FTP/NAS, trigger recording, email notifications
• Advanced Analytics: People density monitoring (panorama mode only)

General:

• Protection Ratings: IP67, IK10 (vandal-resistant)
• Built-in Heater: Operates at temperatures down to -40°C
• Power Supply:
  • 12 VDC, max. 24 W
  • PoE: 802.3at, 42.5 V to 57 V
• Operating Temperature: -40°C to 60°C
• Dimensions: 189.5 × 207.63 × 206.62 mm
• Weight: Approx. 3 kg (6.6 lbs)

The Hikvision® DS-2CD6924G0-IHS NFC is ideal for wide-area monitoring, providing high-quality panoramic views and robust weatherproofing, ensuring reliable security under any conditions.
